Description

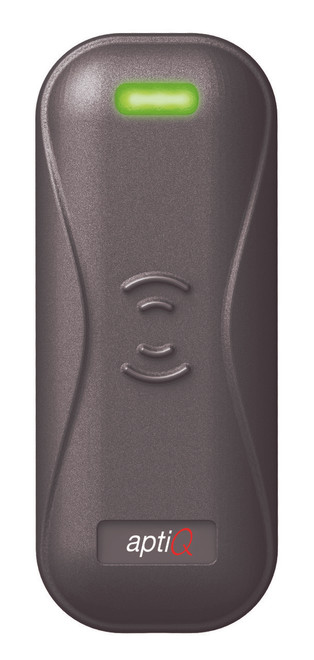

Schlage SM10 Smart Mini-Mullion Reader
The Schlage® SM10 Smart Mini-Mullion Reader is a compact 13.56 MHz smart credential reader designed for access control installations where mounting space is limited. Its narrow profile makes it well suited for door frames, mullions and other tight mounting locations while supporting compatible smart credential technologies for modern physical access control systems.
Schlage SM10 13.56 MHz Smart Card Reader
The Schlage SM10 is a single-technology smart mini-mullion reader designed for compatible 13.56 MHz contactless credentials. Unlike Schlage multi-technology readers that also support legacy 125 kHz proximity credentials, the SM10 is intended for smart credential environments.
The reader's narrow mini-mullion housing makes it particularly useful at aluminum door frames, narrow entrances and other locations where a larger wall-mounted reader may not fit. It can be used in compatible interior and exterior access control applications.
Organizations using Schlage smart credentials or compatible MIFARE-based credentials can use the SM10 as part of a modern contactless access control deployment.
Schlage SM10 Key Features
- Schlage smart mini-mullion access control reader
- Model: SM10
- Compact narrow-profile reader design
- 13.56 MHz contactless smart credential technology
- Supports compatible MIFARE® credential technologies
- Supports compatible MIFARE DESFire® credentials
- NFC-compatible credential capability
- Suitable for interior and exterior installations
- Tri-state LED visual indication
- Audible reader feedback
- Quick-connect installation design
- Designed for compatible access control panels
SM10 at a Glance
- Manufacturer: Schlage / Allegion
- Model: SM10
- Reader Style: Smart Mini-Mullion
- Credential Frequency: 13.56 MHz
- Credential Type: Contactless smart credentials
- Form Factor: Narrow mullion-style reader
- Interface: Wiegand
- Indicators: LED and audible feedback
- Installation: Interior / Exterior
13.56 MHz Smart Credential Support
The Schlage SM10 smart reader is designed for compatible 13.56 MHz contactless credentials. Supported credential families may include MIFARE Classic, MIFARE Plus and MIFARE DESFire EV technologies, depending on credential configuration and system requirements.
Because smart credential platforms can differ in encoding, application structure and system configuration, compatibility should be confirmed for the specific credential and access control system before deployment.
Is the Schlage SM10 a Multi-Technology Reader?
No. The Schlage SM10 is a single-technology 13.56 MHz smart reader. It should not be confused with Schlage MT-series multi-technology readers that support both 125 kHz proximity and 13.56 MHz smart credentials.
If your installation must continue supporting legacy 125 kHz proximity cards while also reading smart credentials, verify whether a Schlage multi-technology reader such as an applicable MT-series model is required instead.
Compact Mini-Mullion Reader Design
A mini-mullion reader is designed with a narrow housing that fits locations where mounting space is limited. The compact SM10 form factor is particularly useful on aluminum door frames, mullions and narrow architectural surfaces.
This allows integrators to install a smart credential reader without requiring the larger footprint associated with standard wall-switch or single-gang reader designs.
Common Applications
- Corporate office access control
- Healthcare facilities
- Schools and universities
- Government facilities
- Commercial properties
- Industrial facilities
- Narrow-frame door installations
- 13.56 MHz smart credential deployments
Before Ordering an SM10
- Confirm the credential technology in use
- Verify 13.56 MHz smart credential compatibility
- Confirm access control panel compatibility
- Verify Wiegand interface requirements
- Check available mounting space
- Confirm interior or exterior installation requirements
Schlage SM10 Manufacturer Documents
Use the official Schlage / Allegion documentation below for current SM10 specifications, supported credential technologies, installation information and reader requirements.
Schlage Single Technology Readers Data Sheet SM10 Installation Guide Schlage Readers & Credentials Comparison Guide
Why Order Schlage Readers from ID Enhancements?
ID Enhancements supplies access control readers and credentials for security dealers, system integrators and organizations maintaining installed physical access control systems.
When replacing an existing reader or planning a smart credential deployment, verify the reader model, credential technology, interface and system requirements before ordering. Our team can help with reader and credential compatibility questions.
Frequently Asked Questions
What is the Schlage SM10?
The Schlage SM10 is a compact 13.56 MHz smart mini-mullion access control reader designed for compatible contactless smart credentials.
Is the Schlage SM10 a multi-technology reader?
No. The SM10 is a single-technology smart reader designed for 13.56 MHz credentials. Schlage MT-series readers are used when both legacy 125 kHz proximity and 13.56 MHz smart credential support are required.
What frequency does the Schlage SM10 use?
The SM10 operates with compatible 13.56 MHz contactless smart credentials.
Does the SM10 support MIFARE credentials?
Yes. The SM10 supports compatible MIFARE-based credential technologies, including applicable MIFARE Classic, MIFARE Plus and MIFARE DESFire credentials.
Does the SM10 read 125 kHz proximity cards?
No. The SM10 is not a 125 kHz proximity reader. If both 125 kHz proximity and 13.56 MHz smart credentials must be supported, an appropriate Schlage multi-technology reader should be considered.
What does mini-mullion reader mean?
A mini-mullion reader has a narrow housing designed for door frames, mullions and other locations where mounting space is limited.
Can the Schlage SM10 be installed outdoors?
The SM10 is designed for compatible interior and exterior access control installations when installed according to Schlage requirements.
Does the Schlage SM10 use Wiegand?
Yes. The SM10 supports Wiegand communication for integration with compatible access control panels.
