Camden CM-336/41SW Wireless Touchless Wave-to-Open Switch – Stainless Steel, Double Gang
The Camden CM-336/41SW touchless switch is a battery-powered, wireless wave-to-open door activation switch designed for hands-free entry and request-to-exit applications. A built-in 915 MHz spread spectrum wireless transmitter eliminates the need for control wiring at the switch location, while infrared sensing allows users to activate the door with a simple hand wave. This configuration features a stainless steel double-gang faceplate with a hand icon and “WAVE TO OPEN” text for clear, intuitive operation.
CM-336/41SW Key Features
- Touchless wave-to-open activation
- Battery-powered operation
- Built-in 915 MHz spread spectrum wireless transmitter
- Infrared hand detection
- Standard sensing range of approximately 1 to 12 inches
- Momentary operating mode
- Stainless steel faceplate
- Double-gang faceplate
- Hand icon with “WAVE TO OPEN” text
- Non-illuminated configuration
- Rubber gasket supplied for weather/water-resistant applications
- Compatible surface mounting box: CM-43CBLA
- Wireless receiver required for operation
Battery-Powered Wireless Operation
The Camden CM-336 platform uses two AA batteries and incorporates its wireless transmitter directly into the switch. Camden estimates battery life at approximately four years based on 100 operations per day, helping reduce routine maintenance in typical commercial door activation applications.
A built-in low-battery alarm and battery test gauge provide additional maintenance support. Because this is a wireless transmitter model, a compatible Camden wireless receiver is required at the door control or operator.
Hands-Free Wave-to-Open Door Activation
Instead of physically pressing a push button or door activation plate, the user simply moves a hand within the switch's sensing area. The infrared sensor detects the motion and the CM-336 transmits a wireless activation signal to the compatible receiver. This makes the CM-336/41SW hands-free switch particularly useful in applications where reduced physical contact, accessibility, convenience, or cleaner door operation is desired.
Common Applications
- Automatic door activation
- Request-to-exit applications
- Accessible entrances
- Healthcare facilities
- Commercial offices
- Schools and institutional buildings
- Retail entrances
- Public facilities
- Restrooms and sanitation-sensitive environments
- Locations where running switch wiring is difficult

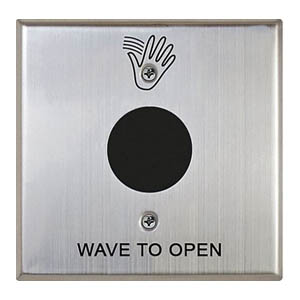

Stainless Steel Double-Gang Faceplate
This configuration uses a stainless steel double-gang faceplate for a professional appearance and increased physical durability. The hand graphic and “WAVE TO OPEN” text clearly communicate how the device should be used, helping reduce confusion for visitors and building occupants.
Important: This is a non-illuminated faceplate configuration. Do not select this double-gang non-illuminated faceplate when ordering a light-ring configuration.
Weather-Resistant Installation
A rubber gasket is supplied for weather- and water-resistant applications. For surface-mounted installations using this double-gang configuration, the compatible Camden surface box is CM-43CBLA. Installation conditions should always be evaluated to ensure the complete assembly provides the protection required for the environment.
Touchless Switch Comparison
| Switch Type | Physical Contact | Wiring at Switch | Best Use |
|---|---|---|---|
| CM-336/41SW Wireless Touchless | No | No control wiring required at switch | Retrofits, hands-free activation, locations where new wiring is difficult |
| Wired Touchless Switch | No | Yes | New construction or installations with accessible wiring |
| Mechanical Push Plate | Yes | Varies | Traditional physical door activation |
Why choose the CM-336/41SW? The wireless design is particularly useful for retrofit projects and locations where routing new control wiring to the activation switch would be difficult, disruptive, or costly.
PDF Resources
Camden CM-336 SureWave™ Touchless Switch Specification Sheet
Manufacturer specifications, dimensions, faceplate options, graphic codes, battery information, sensing range, and compatible receiver details.
Wireless Wave-to-Open Switch for Automatic Door Activation
The Camden CM-336/41SW wireless touchless switch provides a practical solution for automatic door activation, request-to-exit, accessibility, and hands-free entry applications. Its battery-powered design and built-in 915 MHz wireless transmitter make it especially useful for retrofit installations where running new control wiring may be undesirable.
With a durable stainless steel double-gang faceplate, clear hand graphic and “WAVE TO OPEN” instructions, weather-resistant gasket, adjustable hands-free sensing area, and long expected battery life, the CM-336/41SW combines easy operation with flexible commercial installation.
