Description

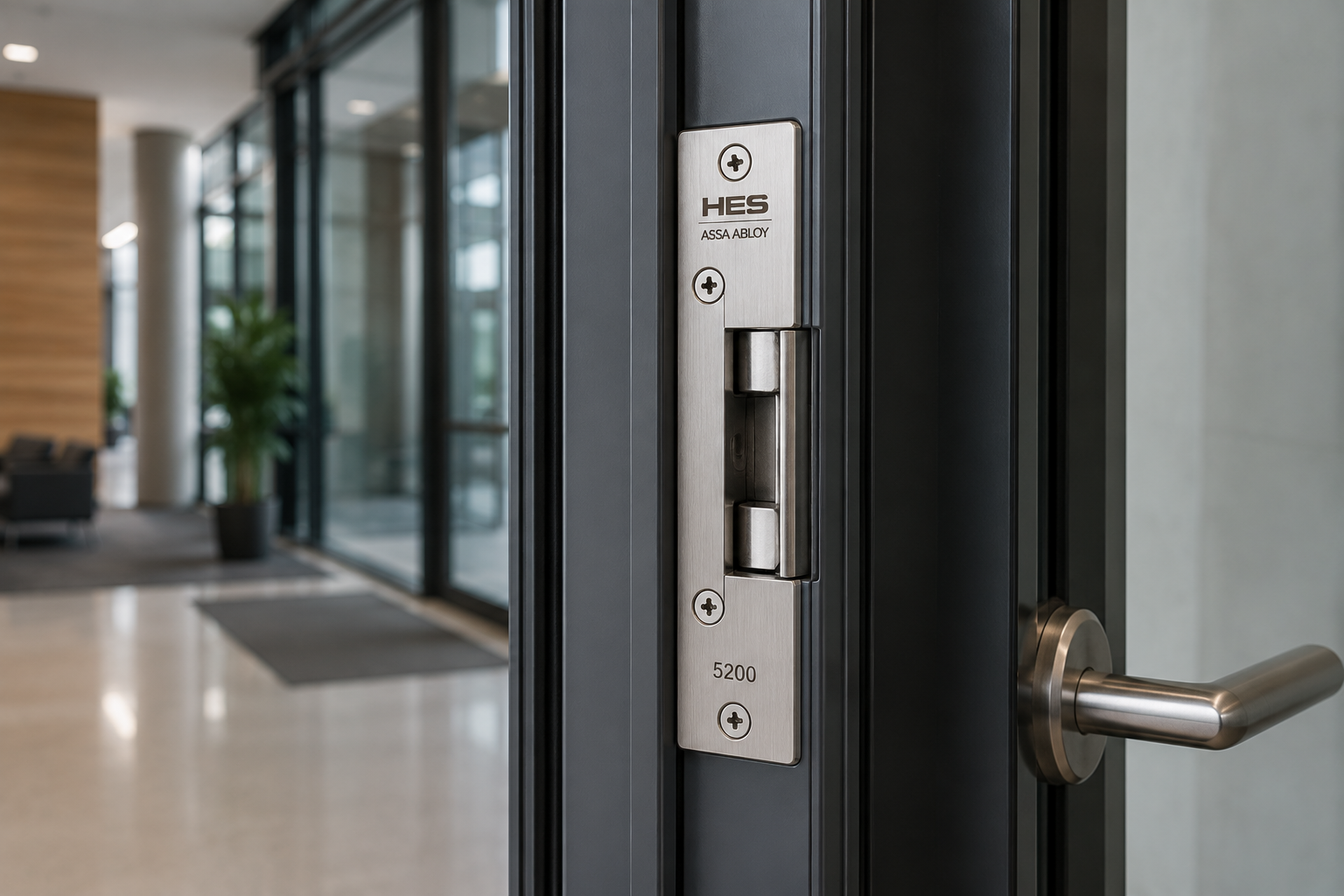

HES 5200-12/24D-630 Electric Strike Body | 12/24V Grade 1
Adjustable Commercial Electric Strike for Cylindrical Locksets | HES Part 10590401
The HES 5200-12/24D-630 Electric Strike Body is a Grade 1 commercial electric strike designed to provide dependable electronic access control for cylindrical lock applications. Featuring HES's in-frame horizontal adjustment, the 5200 Series allows installers to fine-tune the strike opening after installation to better accommodate the horizontal position of the latchbolt.
Often searched as HES 5200/12, 5200-12/24, or simply the HES 5200 electric strike, this dual-voltage strike supports 12 or 24 volt operation and provides a versatile solution for commercial access control installations where durability, adjustability and reliable latch engagement are important.
The 5200-12/24D-630 combines commercial-duty construction with an adjustable keeper, non-handed design and plug-in voltage connectors. Its compact configuration makes the 5200 Series particularly useful for professional access control installations and retrofit applications where field adjustment can help achieve proper latch alignment.
Key Features
- HES 5200 Series commercial electric strike body
- Designed primarily for cylindrical locksets
- In-frame horizontal keeper adjustment for easier latch alignment
- 12/24V dual-voltage operation
- 12 VDC and 24 VDC continuous-duty operation
- 12–16 VAC and 24 VAC intermittent-duty capability
- Non-handed configuration
- Internally mounted solenoid
- Plug-in 12V and 24V connectors
- Trim enhancer included
- 1,500 lb static strength
- 70 ft-lb dynamic impact resistance
- UL 1034 burglary-resistant performance
- 630 satin stainless steel finish
Why Horizontal Adjustment Matters
Door alignment can change because of frame conditions, seals, silencers, installation tolerances and normal movement over time. The HES 5200 keeper provides approximately 3/16 inch of horizontal adjustment, and HES states that the adjustment can be made while the strike remains installed in the frame. This can help installers fine-tune latch engagement without starting over with a new frame cutout.
Common Applications
- Commercial access control systems
- Office and administrative buildings
- Schools and educational facilities
- Healthcare and institutional facilities
- Retail and commercial properties
- Industrial and warehouse facilities
- Multi-tenant buildings
- Retrofit electronic access control projects
- Cylindrical-lock openings requiring field adjustability
Technical Specifications
| Manufacturer | HES / ASSA ABLOY |
| Series | 5200 Series |
| Model | 5200-12/24D-630 |
| Part Number | 10590401 |
| Product Type | Electric Strike Body |
| Lock Type | Cylindrical Lock |
| Voltage | 12 / 24 Volt |
| 12 VDC Draw | 0.24 A |
| 24 VDC Draw | 0.12 A |
| Static Strength | 1,500 lb |
| Dynamic Impact | 70 ft-lb |
| Adjustment | Approx. 3/16" horizontal |
| Finish | 630 Satin Stainless Steel |
Best Fit for the HES 5200
Choose the HES 5200 Series when the opening uses a compatible cylindrical lock and horizontal adjustability is an important installation consideration. The adjustable keeper distinguishes the 5200 from basic fixed-position electric strike solutions and can make final alignment easier for installers and access control professionals.
HES Electric Strike Comparison
Not every HES electric strike is designed for the same opening. Use this quick comparison to help identify which series may better match the application.
| Series | Best Known For | Lock Application | Consider When... |
|---|---|---|---|
| HES 5000 | Low-profile Grade 1 solution | Cylindrical locksets | A compact, low-profile strike is preferred |
| HES 5200 | Grade 1 horizontal adjustability | Cylindrical locksets | Field adjustment and latch alignment flexibility are priorities |
| HES 7501 | Grade 1, fire-rated, preload solution | Cylindrical locksets | The application requires fire rating or preload capability |
Important Application Note
The HES 5200 Series is designed for cylindrical lock applications. HES states that the 5200 has not been factory-tested for mortise-lock compatibility. The 5200 is also not fire rated and HES does not rate the 5200 for outdoor applications. Always verify the door, frame, lockset, latchbolt, faceplate, voltage and code requirements before ordering.
HES 5200 Manufacturer Resources
Review official HES documentation before installation or specification:
Before Ordering the HES 5200-12/24D-630
Confirm the lock type, latchbolt dimensions, door and frame construction, voltage, required operating mode, faceplate requirements and any monitoring requirements before ordering. This listing is for the HES 5200-12/24D-630 electric strike body, part number 10590401. Additional faceplates or accessories may be required depending on the opening.
HES 5200/12 Adjustable Electric Strike for Professional Access Control
For installers searching for an HES 5200/12 electric strike, the 5200-12/24D-630 provides the proven 5200 Series combination of Grade 1 commercial construction, dual-voltage flexibility and in-frame horizontal adjustment. Designed for professional cylindrical-lock access control applications, the HES 5200 gives locksmiths, security integrators, contractors and facility professionals an adjustable electric strike solution backed by HES and ASSA ABLOY.
