Description

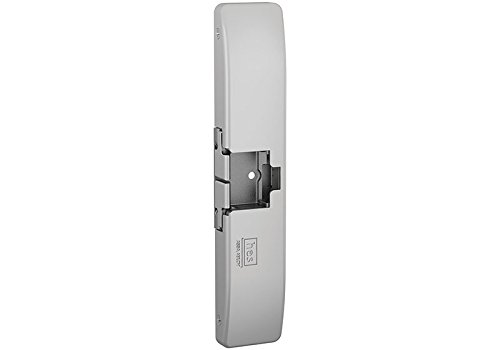

HES | 9700-630
Electric Strike, Heavy Duty, Fire Rated, 1-3/4" Width x 3/4" Depth x 9" Height, Satin Stainless Steel
Features
- Installs in Metal or Wood Frames
- Wood Screws Not Provided
- Separate Base and Decorative Cover for Easy Adjustments
- Tamper-Resistant, Stainless Steel Construction
- Field Selectable Fail Secure/Fail Safe
- Horizontal Adjustability
- Non-Handed
- Internally ed Solenoid
Specifications:
| ANSI Grade | GRADE 1 |
|---|---|
| Finish | US32D SATIN STAINLESS STEEL |
| Frame Material | WOOD OR HOLLOW METAL |
| Locking State | SELECTABLE FS OR FSE |
| Max Latch Length - Inch | MAXIMUM 3/4 INCH THROW |
| Mounting | FOR CENTERLINE INSTALLATIONS |
| Pull Strength - Lbs | 1000 - 1500 LBS. |
| Product Type | FOR USE WITH SURFACE MOUNTED LOCKS |
| Sales Category | ELECTRIC STRIKE |
| UL | UL BURGLARY RESISTANCE |
| Voltage and Duty INT | 12 OR 24V DC |
| Warranty | 5 YEAR LIMITED |
| Voltage and Duty CONT | SELECTABLE 12/24V DC |
