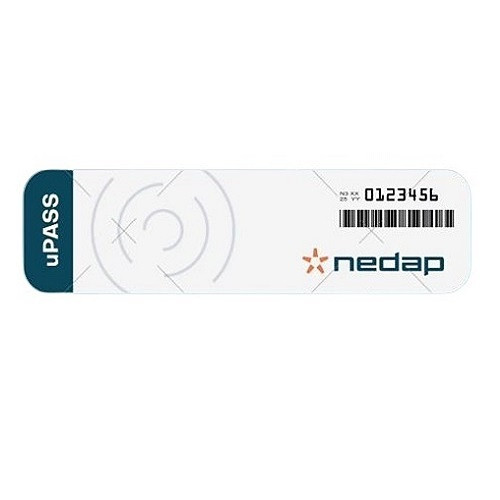

NEDAP 9988807 Gen 2 UHF Tamper-Resistant Windshield Tag – 26-Bit Custom Encoded, Pack of 200
The NEDAP 9988807 Gen 2 UHF Windshield Tag is a long-range, passive UHF vehicle identification credential designed for automated parking, gated-entry and vehicle access control applications. Supplied custom encoded in 26-bit format, these windshield tags provide a convenient way to issue credentials using your specified facility code and credential number range.
Designed for permanent installation on the inside of a vehicle windshield, the NEDAP 9988807 uses passive EPC Gen2 UHF technology, requires no battery and is maintenance free. When paired with compatible Nedap uPASS readers, the credential supports long-range hands-free vehicle identification, helping drivers enter secured parking areas without presenting a card at a conventional access control reader.
Quick Specifications
| Manufacturer | NEDAP |
| Part Number | 9988807 |
| Credential Type | UHF Windshield Vehicle Identification Tag |
| Technology | Passive UHF / EPC Gen2 |
| Encoding | Custom 26-Bit Encoding |
| Facility Code / Numbering | Custom Facility Code and Sequential Credential Number Range |
| Read Range | Up to 50 ft (15 m) with uPASS Target; up to 33 ft (10 m) with uPASS Go* |
| Dimensions | Approximately 4.25" × 1.37" |
| Color | White with Printing |
| Mounting | Inside Vehicle Windshield with Pressure-Sensitive Adhesive |
| Power | Passive / Battery Free |
| Protection Class | IP54 |
| Package Quantity | 200 Tags |
*Maximum read range depends on the reader, installation and surrounding environment.
Long-Range Vehicle Identification
The NEDAP 9988807 is engineered for automated vehicle identification where conventional short-range access credentials would require the driver to stop, reach out of the vehicle or present a card manually.
Using passive UHF technology, the windshield tag can be read from a substantial distance by compatible Nedap uPASS readers. This makes it particularly useful at vehicle gates, parking entrances, employee parking areas and other controlled entry points where fast traffic flow is important.
Because the tag contains no battery, there are no batteries to replace and no ongoing credential maintenance associated with battery life.
Custom 26-Bit Encoding
This version of the NEDAP 9988807 windshield tag is custom encoded for your access control system rather than supplied with generic stock numbering.
Please provide the required:
- Facility Code
- Starting Credential Number
- Ending Credential Number
- 26-Bit Format Requirements
Custom-programmed tags are manufactured specifically for your order and are therefore non-returnable. Please verify all encoding information carefully before ordering.
NEDAP 9988807 Key Features
- Long-range automatic vehicle identification
- Passive UHF technology
- EPC Gen2 compatible
- Battery-free and maintenance-free operation
- Custom 26-bit credential encoding
- Custom facility code and sequential numbering
- Thin, flexible windshield sticker format
- Designed for permanent windshield installation
- UV-resistant construction
- Tamper-resistant design
- Up to 50-foot read range with uPASS Target*
- Sold in packages of 200 tags
Tamper-Resistant Windshield Installation
The 9988807 is designed to be permanently affixed to the inside of a vehicle windshield. Its pressure-sensitive adhesive makes installation straightforward while helping associate the credential with a specific vehicle.
Nedap describes its UHF windshield credentials as tamper resistant, providing visible evidence of removal and making the credential difficult to remove intact and functional. This is especially useful for parking and gated-access environments where credential sharing or transfer between vehicles needs to be discouraged.
Ideal Applications
- Employee parking facilities
- Commercial parking garages
- Gated communities
- Condominiums and residential developments
- Corporate campuses
- Secured vehicle entrances
- Restricted parking areas
- University and campus parking
- Office complexes
- Automated gate access systems
Compatible NEDAP uPASS Readers
The NEDAP 9988807 UHF Windshield Tag is designed for use with Nedap's long-range UHF vehicle identification reader platform, including:
- uPASS Target – read range up to approximately 50 ft (15 m)
- uPASS Go – read range up to approximately 33 ft (10 m)
Nedap also identifies legacy uPASS Reach and uPASS Access readers as compatible, although these reader models are listed by the manufacturer as end-of-life. Actual credential read distance depends on reader model, mounting, vehicle windshield characteristics, antenna orientation and the surrounding environment.
Important Custom-Encoding Information
This product is custom encoded and is not returnable. Please confirm your facility code, starting credential number and ending credential number before submitting the order.
Custom orders are produced according to the manufacturer's production schedule and ship directly from the manufacturer. Because these tags are made specifically to the requested credential configuration, production cannot be expedited by ID Enhancements.
Why Choose the NEDAP 9988807?
For organizations that need reliable, hands-free vehicle identification using an existing 26-bit access control format, the NEDAP 9988807 combines long-range UHF performance, custom credential programming, permanent windshield mounting and passive battery-free operation. Its thin form factor and tamper-resistant installation make it particularly well suited for controlled vehicle access where credentials should remain associated with a specific automobile.
Why Buy NEDAP UHF Credentials from ID Enhancements?
ID Enhancements has supplied access control credentials and identification products for more than three decades. Our team understands the importance of correct credential formats, facility codes and numbering when ordering custom-programmed access control credentials.
Need help determining whether the NEDAP 9988807 custom-encoded windshield tag is correct for your existing uPASS vehicle access system? Contact ID Enhancements before placing your order and we can help review the credential information you have available.
