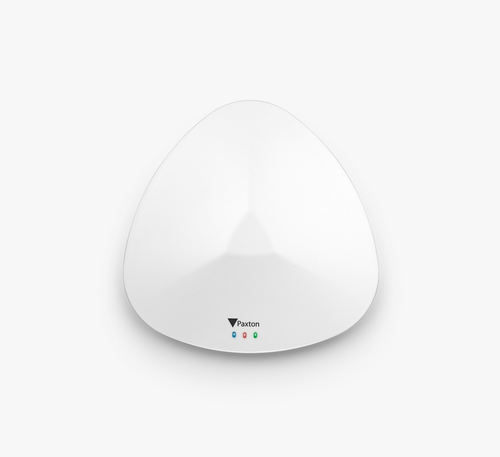

PAXTON 010-592-US Paxton10 Wireless Connector for PaxLock Pro
The PAXTON 010-592-US Paxton10 Wireless Connector provides the Bluetooth® wireless communication link between Paxton10 access control and compatible Paxton10 PaxLock Pro wireless electronic locks. Designed for simple integration and discreet wall or ceiling mounting, the Wireless Connector allows PaxLock Pro units to be discovered, monitored and managed directly through the Paxton10 system without requiring traditional access control wiring at each wireless lock.
Each Wireless Connector can communicate with up to 10 PaxLock Pro units, and up to three Wireless Connectors can be cascaded from a single Paxton10 controller, providing a flexible way to expand wireless access control throughout a facility.
Key Features
- Bluetooth® Low Energy connectivity for compatible PaxLock Pro units
- Integrates PaxLock Pro wireless locks with the Paxton10 access control system
- Supports up to 10 PaxLock Pro units per Wireless Connector
- Up to 3 Wireless Connectors can be cascaded from one Paxton10 controller
- Typical wireless range of approximately 50 ft / 15 m to PaxLock Pro
- Connects directly to a compatible Paxton10 controller
- Powered directly through the controller connection
- Easy plug-and-play installation
- Health, communications and Bluetooth status LEDs
- Suitable for discreet wall or ceiling mounting
- Managed through Paxton10 software
Product Specifications
| Manufacturer | Paxton |
| Part Number | 010-592-US |
| Product | Paxton10 Wireless Connector |
| System | Paxton10 |
| Wireless Technology | Bluetooth® 2.4 GHz / BLE |
| Locks Per Connector | Up to 10 PaxLock Pro Units |
| Connectors Per Controller | Up to 3 |
| Typical Wireless Range | Approx. 50 ft / 15 m |
| Power | Powered Through Paxton10 Controller / RS485 |
| Mounting | Surface / Wall / Ceiling |
| Warranty | Paxton 5-Year Warranty |
Connect PaxLock Pro to Your Paxton10 System
The Paxton10 Wireless Connector acts as the communications bridge between a Paxton10 controller and PaxLock Pro wireless locksets. It communicates wirelessly with PaxLock Pro using Bluetooth® while maintaining a wired data connection to the Paxton10 controller.
Once a PaxLock Pro is discovered and added to the Paxton10 system, administrators can manage the lock through Paxton10 alongside other access control hardware. Hardware information including device status, battery status and system mapping can be viewed through the Paxton10 management interface.
Supports Up to 10 PaxLock Pro Units
Each 010-592-US Wireless Connector can register and communicate with up to 10 compatible PaxLock Pro units. This allows multiple wireless-controlled doors to share a single Paxton10 Wireless Connector.
For larger installations, Paxton allows up to three Wireless Connectors to be cascaded from one controller, helping extend Paxton10 wireless coverage throughout the building.
Designed for PaxLock Pro
The Wireless Connector is designed specifically to support compatible Paxton10 PaxLock Pro wireless electronic locksets. This allows facilities to extend access control to doors where traditional wired readers, controllers and lock wiring may be difficult or unnecessary.
PaxLock Pro provides the electronic locking and credential-reading hardware at the door, while the Wireless Connector provides the Bluetooth communications path back into Paxton10.
Simple Controller-Powered Installation
The Paxton10 Wireless Connector plugs directly into a compatible Paxton10 Door or Video Controller and receives its power from the controller, eliminating the need for a separate local power supply at the connector.
Its compact enclosure and supplied mounting plate allow the connector to be mounted discreetly on a wall or ceiling. Status LEDs provide visual information for system health, communications and Bluetooth connectivity to assist with installation and troubleshooting.
Communication & Range
- Bluetooth® 2.4 GHz communication to PaxLock Pro
- Typical wireless range approximately 50 ft / 15 m
- RS485 / Paxton10 protocol connection to controller
- Maximum controller-to-connector data line: approximately 328 ft / 100 m
- Maximum connector-to-connector data line: approximately 328 ft / 100 m
Actual wireless range can vary depending on building construction, obstructions, radio interference and installation conditions.
Physical Specifications
| Height | Approx. 6.46" |
| Width | Approx. 6.40" |
| Depth | Approx. 1.32" |
| Operating Temperature | 32°F to 113°F |
Ideal for Expanding Paxton10 Wireless Access Control
- Interior office doors
- Administrative areas
- Education facilities
- Healthcare facilities
- Commercial buildings
- Multi-door access control systems
- Retrofit access control projects
- Locations using compatible PaxLock Pro hardware
System Compatibility
Paxton 010-592-US is a Paxton10 system component. It is designed to provide wireless connectivity between compatible Paxton10 controllers and Paxton10 PaxLock Pro hardware. The Wireless Connector is not a standalone access control controller or electronic lock.
