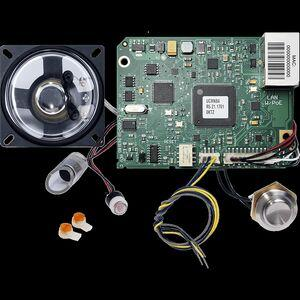

Viking Electronics SP568 E-1600-50-IPEWP VoIP Emergency Phone Parts Kit with Plastic Screen – No Switch
The Viking Electronics SP568 E-1600-50-IPEWP is an Enhanced Weather Protection VoIP emergency phone parts kit designed for installation behind a custom elevator, emergency call or communication panel. This specific SP568 configuration includes a plastic protective screen and does not include an activation switch, making it appropriate for installations in which the finished panel provides the required momentary call switch.
Engineered for compatible SIP-based VoIP networks, the E-1600-50-IPEWP provides hands-free emergency communication, IEEE 802.3af PoE power, programmable emergency dialing and automatic location identification. Enhanced Weather Protection makes the assembly suitable for demanding installations exposed to precipitation, condensation or high humidity when properly mounted within a compatible finished enclosure.
Important SP568 Configuration
- Viking base model: E-1600-50-IPEWP
- Distributor identifier: SP568
- Includes a plastic protective screen
- Activation switch is not included
- Designed for installation behind a customer-supplied custom panel
- Requires a compatible momentary switch provided by the finished installation
Features and Benefits
- Hands-free SIP VoIP emergency communication
- Designed for custom elevator and emergency call panels
- PoE Class 1 operation consuming less than 4 watts
- Programmable to dial up to five emergency numbers
- Cycles through backup numbers on busy or ring-no-answer
- Non-volatile digital voice announcer with 28 seconds of memory
- Delivers a recorded location announcement or DTMF identification code
- Red “Call Connected” LED indication
- Automatic Noise Canceling for noisy environments
- VoIP audio detection eliminates push-to-talk operation
- Automatic polling and programming software included
- Remote programming and network-downloadable firmware
- Diagnostics for testing the microphone, speaker and relay
- 2-amp relay contacts for compatible auxiliary equipment
- Enhanced Weather Protection for demanding environments
- Extended operating temperature range
Technical Specifications
| Manufacturer | Viking Electronics |
| Distributor Part Number | SP568 |
| Viking Model | E-1600-50-IPEWP |
| Product Type | VoIP emergency phone parts kit |
| Protective Screen | Plastic screen included |
| Activation Switch | Not included |
| Communication | Hands-free SIP VoIP |
| Power | IEEE 802.3af PoE, Class 1, less than 4 watts |
| Network Connection | RJ45, 10/100 Base-T |
| Network Compliance | SIP 2.0 RFC3261, 100BASE-TX |
| Audio Codecs | G.711u, G.711a and G.722 |
| Programmable Numbers | Up to 5 emergency numbers |
| Voice Memory | 28 seconds |
| Relay Rating | 2A at 30 VDC; 1A at 125 VAC |
| Weather Protection | EWP; designed to meet IP66 requirements |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Humidity | Up to 100% |
| Board Dimensions | Approximately 3.58 × 2.71 × 0.8 inches |
| Mounting | Behind a custom finished panel |
Reliable Emergency Call Routing
The Viking E-1600-50-IPEWP can be programmed with as many as five emergency telephone numbers. If the first number is busy or does not answer, the phone can cycle through the programmed backup numbers to improve the likelihood that an emergency call reaches an available responder.
Calls may be terminated by a busy signal, programmable time-out or touch-tone command. The phone’s non-volatile memory retains telephone numbers, location information and other programming parameters without requiring batteries.
Automatic Location Identification
During an emergency call, the E-1600-50-IPEWP can deliver a prerecorded digital announcement identifying the phone’s location. It can alternatively transmit a programmed DTMF touch-tone identification code. This capability is especially important in elevators, parking structures, campuses and other properties containing multiple emergency call stations.
Enhanced Weather Protection
The EWP designation identifies Viking’s Enhanced Weather Protection option. EWP products are engineered for environments where the equipment may be exposed to precipitation, condensation or high humidity and are designed to meet IP66 ingress-protection requirements.
Depending on the assembly, EWP construction may include protective gaskets, sealed connections, gel-filled connectors and potted circuit boards. The finished custom panel and surrounding enclosure must also be properly designed and sealed to preserve the intended environmental protection of the completed installation.
Common Applications
- Elevator emergency telephones
- Areas of refuge
- Parking garages and parking lots
- Campus emergency stations
- Public entryways and building lobbies
- Medical and healthcare facilities
- Emergency pool phones
- ATM and banking locations
- Stadiums and convention centers
- Industrial communication stations
- Custom emergency call panels
- Public-access communication points
Installation and Ordering Guidance
This SP568 configuration does not include a call switch. The installer must provide a compatible momentary activation switch as part of the custom finished panel. Confirm switch type, wiring, LED requirements and panel openings before ordering or fabricating the enclosure.
The E-1600-50-IPEWP is a parts kit for installation behind a custom panel; it is not a complete surface-mounted emergency phone enclosure. The finished panel must provide the appropriate openings for audio, visual indication and user activation while protecting internal components.
Before purchase, verify the available PoE network, SIP compatibility, emergency-call routing, custom-panel design and all local elevator, accessibility, fire and life-safety requirements with the system designer or authority having jurisdiction.
Viking Manufacturer Documentation
Documentation is provided by Viking Electronics. Product specifications and compatibility information are subject to change.
Frequently Asked Questions
What is the Viking SP568?
SP568 identifies a Viking E-1600-50-IPEWP VoIP emergency phone parts kit configuration supplied with a plastic protective screen and without an activation switch.
Does the SP568 include the emergency call button?
No. This configuration does not include an activation switch. A compatible momentary switch must be supplied as part of the custom panel installation.
Is the E-1600-50-IPEWP a complete emergency phone station?
It is a behind-the-panel parts kit rather than a complete surface-mounted station. The installer must provide the custom finished panel, appropriate enclosure and activation switch.
How is the Viking E-1600-50-IPEWP powered?
It uses IEEE 802.3af PoE Class 1 and consumes less than 4 watts under the manufacturer’s specifications.
How many emergency numbers can the phone dial?
The phone can be programmed to dial up to five emergency numbers and cycle through backup numbers when a line is busy or unanswered.
What does EWP mean?
EWP means Enhanced Weather Protection. Viking EWP products are designed to meet IP66 protection requirements for installations exposed to precipitation, condensation or high humidity when properly installed.
Can the E-1600-50-IPEWP identify its location during a call?
Yes. It can deliver a prerecorded location announcement or transmit a programmed DTMF identification code to help responders identify the originating emergency station.
