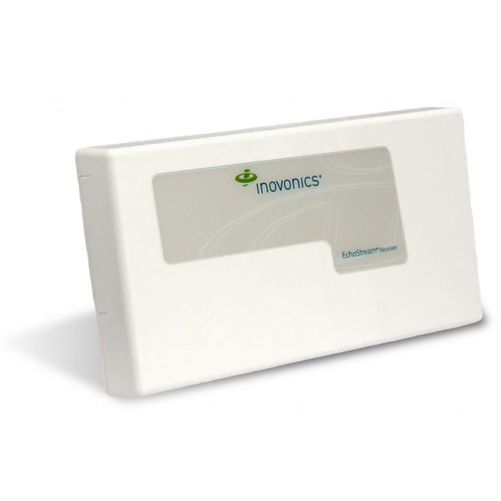

Inovonics EN4200 EchoStream Security-Only Serial Receiver | 902–928 MHz RS-232 Gateway
The Inovonics EN4200 EchoStream® Security-Only Serial Receiver is a wireless gateway designed to connect compatible Inovonics EchoStream one-way security transmitters with a supported head-end application through an RS-232 serial interface. The receiver collects wireless security, alarm, tamper, supervision, and device-status messages and delivers the decoded EchoStream data to the connected application controller for processing.
Operating within the North American 902–928 MHz frequency range, the EN4200 uses frequency-hopping spread-spectrum technology to provide dependable communication in commercial intrusion, panic, hold-up, fire-alarm, and other professionally designed security applications. A supervised connection between the receiver and head-end application helps identify a loss of serial communication, while scalable integration can support hundreds to thousands of wireless security devices depending on the application and system architecture.
The EN4200 is an excellent choice for security manufacturers, software developers, system integrators, and commercial alarm professionals who need to incorporate Inovonics EchoStream wireless security transmitters into a compatible serial-based security platform.
Important Security Integration Notice: The EN4200 is a security-only RS-232 receiver. It requires a compatible head-end application, control-panel interface, or application controller capable of interpreting the Inovonics EchoStream serial data format. It is not a standalone alarm control panel, IP gateway, or general-purpose receiver for temperature, analog, or submetering applications.
Key Features and Benefits
- Security-only wireless gateway: Designed specifically for compatible EchoStream one-way security transmitters.
- RS-232 serial interface: Sends decoded EchoStream security messages to a supported head-end application or controller.
- Supervised serial connection: Helps the application monitor communication between the receiver and connected system.
- Scalable integration: Can support hundreds to thousands of wireless devices when used with an appropriately designed application.
- EchoStream wireless technology: Uses frequency-hopping spread spectrum for dependable commercial security communication.
- Alarm and device-status messaging: Supports compatible security events such as alarm, tamper, restoration, supervision, and low-battery conditions.
- Operational status LEDs: Transmit, receive, and decode LEDs provide valuable installation and diagnostic information.
- Repeater support: Works within properly designed EchoStream systems incorporating compatible high-power repeaters.
- Compact enclosure: Provides flexible indoor mounting near the supported security controller or integration equipment.
- Commercial security compliance: Listed to recognized UL and CAN/ULC security standards.
Technical Specifications
| Manufacturer | Inovonics Wireless Corporation |
| Model | EN4200 |
| Product Type | Security-only serial receiver |
| Supported Application | EchoStream one-way security transmitters |
| Wireless Platform | Inovonics EchoStream® |
| North American Frequency | 902–928 MHz |
| RF Technology | Frequency-hopping spread spectrum |
| Application Interface | RS-232 serial |
| Power Requirement | 10–13.5 VDC at a minimum of 121 mA |
| Dimensions | 6.54 × 3.62 × 1.05 in. (166.1 × 91.9 × 26.67 mm) |
| Weight | 5.1 oz. (145 g) |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Operating Humidity | Up to 90% relative humidity, non-condensing |
| Regulatory Compliance | Security Level 1 CAN/ULC S304:2016, UL 985, UL 1023 and UL 2610 |
How the Inovonics EN4200 Works
Compatible EchoStream security transmitters send wireless alarm and device-status messages to the EN4200. The receiver decodes these transmissions and passes EchoStream-formatted data to the connected head-end application through its RS-232 serial interface.
The connected application or security controller determines how each transmitter is enrolled, supervised, displayed, reported, and associated with an alarm point or response. The EN4200 therefore serves as the wireless-to-serial communication bridge within the larger security system rather than operating as an independent alarm panel.
Built-In Diagnostic LEDs
Transmit LED
Illuminates when the EN4200 is transmitting serial data to the connected application controller.
Receive LED
Illuminates when the receiver receives serial data from the connected head-end application.
Decode LED
Illuminates when the receiver is decoding an RF transmission from another Inovonics device.
Security Applications
The EN4200 is engineered for professional security systems using compatible EchoStream one-way transmitters. Common applications include:
- Commercial intrusion detection systems
- Wireless door and window protection
- Panic, hold-up, and duress alarm systems
- Wireless motion detection
- Retail and financial security systems
- Healthcare and institutional security
- Campus and multi-building protection
- Compatible wireless fire-alarm applications
- OEM security-system integrations
- Large commercial EchoStream networks
EchoStream Security Device Support
Depending on the capabilities of the connected head-end application, the EN4200 may be used with compatible Inovonics EchoStream security devices such as:
- Door and window transmitters
- Universal alarm transmitters
- Motion detectors
- Glass-break detectors
- Panic and hold-up transmitters
- Duress pendants and fixed-position alarms
- Compatible smoke and CO detectors
- Wireless security RF modules
- EN5040 Series high-power repeaters
- Other supported one-way security devices
Compatibility reminder: The EN4200 may receive an EchoStream transmission even when the connected application does not support that transmitter’s complete message set. Confirm the exact device models, alarm conditions, supervision intervals, and system capacity with the application provider before ordering.
EN4200 vs. EN4000: Which Receiver Do You Need?
| Feature | EN4200 | EN4000 |
|---|---|---|
| Primary Purpose | Security-only applications | Universal one-way applications |
| Supported Device Categories | Compatible security transmitters | Compatible security, temperature and analog transmitters |
| Head-End Connection | RS-232 serial | RS-232 serial |
| North American Frequency | 902–928 MHz | 902–928 MHz |
| Best Choice When | The application is specifically designed for EchoStream security integration | The application requires security, temperature, analog or broader one-way transmitter support |
Always purchase the receiver specified by the security-panel manufacturer, application provider, or system-integration documentation. Similar physical appearance and specifications do not make the EN4000 and EN4200 interchangeable.
What to Verify Before Ordering
- Head-end support: Confirm that the security application or controller specifically supports the Inovonics EN4200.
- Receiver model: Do not substitute an EN4000, EN4200, panel-specific receiver, or relay-output receiver without confirming system compatibility.
- Serial interface: Verify the required RS-232 wiring, connector, communication protocol, and cable configuration.
- Security transmitters: Confirm that every intended EchoStream transmitter and its message conditions are supported.
- System capacity: Determine the transmitter and repeater capacity of the connected controller or software platform.
- Operating frequency: Confirm that the installation requires the North American 902–928 MHz frequency range.
- Power source: Provide 10–13.5 VDC power capable of supplying at least 121 mA.
- Compliance requirements: Confirm the receiver, transmitters, repeaters, power supply, panel, and installation meet the required UL or CAN/ULC listing.
Installation and RF Site Planning
The EN4200 should be installed indoors in an accessible location that provides strong reception from the system’s wireless security devices. Inovonics recommends completing an EchoStream site survey to measure signal strength, verify signal margin, and determine whether repeaters are required.
- Mount the receiver away from metal ductwork, wire mesh, pipes, safes, and metal enclosures.
- Avoid locations where concrete, steel construction, solar-tinted windows, or large equipment may interfere with RF signals.
- Keep serial cable runs as short as practical to minimize cable capacitance.
- Do not route long communication cables next to high-current power wiring.
- Measure the voltage at the receiver when using long power-cable runs.
- Keep the receiver accessible for future inspection, testing, and maintenance.
- Perform a walk test using every transmitter assigned to the receiver.
- Confirm that alarms, tampers, restorations, low-battery conditions, and supervision events are processed correctly.
- Test the complete security system after installation and at regular intervals.
Professional installation required: The EN4200 is intended for installation and maintenance by qualified security technicians familiar with the connected security platform and applicable alarm-system standards.
Frequently Asked Questions
What does the Inovonics EN4200 do?
The EN4200 receives messages from compatible EchoStream one-way security transmitters, decodes the wireless data, and delivers EchoStream-formatted messages to a supported head-end application through an RS-232 connection.
Is the EN4200 a standalone alarm receiver?
No. It requires a compatible security application, application controller, or panel interface to interpret and process the serial data.
What is the difference between the EN4200 and EN4000?
The EN4200 is specifically intended for one-way security transmitters and security applications. The EN4000 is a universal serial receiver designed for compatible one-way security, temperature, and analog transmitters. The receiver specified by the application provider should always be used.
What frequency does the EN4200 use?
The North American EN4200 operates from 902–928 MHz using Inovonics EchoStream frequency-hopping spread-spectrum technology.
How many transmitters can the EN4200 support?
Inovonics states that serial integration can enable hundreds to thousands of wireless devices. Actual capacity is determined by the connected application, control panel, database, repeater design, and applicable listing requirements.
Does the EN4200 connect to Ethernet or Wi-Fi?
No. Its head-end communication interface is RS-232 serial. An application requiring direct network connectivity may need a different Inovonics gateway or an approved panel-specific integration.
Can the EN4200 be used with EchoStream repeaters?
Yes. Compatible EN5040 Series high-power repeaters can be used within properly designed EchoStream security systems when additional wireless coverage is required.
What power does the EN4200 require?
The current Inovonics datasheet specifies 10–13.5 VDC at a minimum of 121 mA.
Manufacturer Documents
Documents are provided by Inovonics Wireless Corporation. Manufacturer specifications and document locations are subject to change.
Scalable EchoStream Security Integration
The Inovonics EN4200 EchoStream Security-Only Serial Receiver provides a dependable wireless-to-serial connection between compatible EchoStream security transmitters and a supported head-end application. Its supervised RS-232 connection, scalable device support, diagnostic LEDs, commercial security listings, and frequency-hopping wireless technology make it a strong foundation for professionally designed intrusion, panic, hold-up, and commercial security systems.
