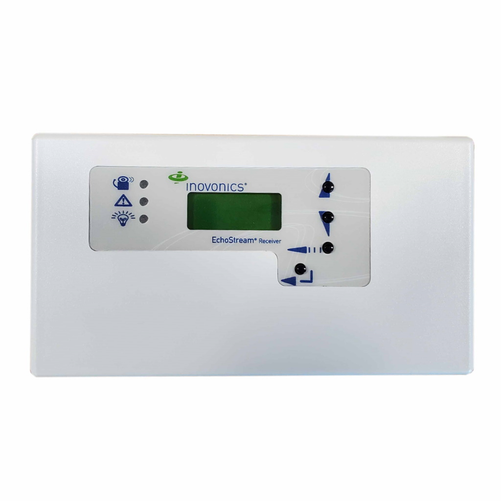

Inovonics EN4216MR EchoStream 16-Zone Multi-Condition Receiver with Relays | 902–928 MHz
The Inovonics EN4216MR EchoStream® 16-Zone Multi-Condition Receiver with Relay Outputs provides a flexible way to add up to 16 compatible EchoStream wireless transmitters to a hardwired security panel or standalone relay-based application. The receiver supports both single-condition and multi-condition transmitters, allowing separate alarm conditions from a compatible device to be assigned to specific relay outputs.
Five programmable Form C alarm relays and one dedicated Form C fault relay allow the EN4216MR to connect EchoStream wireless devices with control panels and equipment that accept conventional hardwired contact inputs. Each alarm or fault condition can be mapped to an output and independently configured for follower, latching, momentary, or toggle operation.
A two-line LCD simplifies programming and troubleshooting by displaying transmitter status, alarm and fault conditions, signal strength, output assignments, and a log of the 50 most recent events. Operating at 902–928 MHz in North America, the EN4216MR also provides transmitter supervision, case-tamper protection, RF-jam detection, internal antennas, and EchoStream frequency-hopping spread-spectrum technology.
Important Output-Capacity Notice: The EN4216MR provides six Form C relays: five alarm relays and one fault relay. It supports up to 16 registered wireless points, but multiple points or alarm conditions may share the same relay. Verify the number of separately identifiable outputs required by the connected panel before ordering.
Key Features and Benefits
- 16 wireless points: Programs and supervises up to 16 compatible EchoStream transmitters or repeaters.
- Multi-condition support: Maps as many as four compatible alarm conditions from a transmitter to selected outputs.
- Five Form C alarm relays: Provides flexible normally open, normally closed, and common connections.
- Dedicated fault relay: Reports transmitter tamper, low-battery, supervision-loss, and other programmed trouble conditions.
- Two-line LCD: Displays alarm status, fault details, point information, output assignments, and programming menus.
- 50-event history: Stores recent alarm, tamper, inactive, and receiver-reset events for troubleshooting.
- Signal-strength display: Shows signal quality, level, and margin for registered devices.
- Programmable relay behavior: Supports follower, latching, momentary, and toggle output modes.
- Adjustable supervision: Allows supervision intervals from zero to 99 hours.
- Secure installation: Includes housing tamper, RF-jam detection, power-loss reporting, and internal antennas.
Technical Specifications
| Manufacturer | Inovonics Wireless Corporation |
| Model | EN4216MR |
| Product Type | 16-zone multi-condition receiver |
| Wireless Platform | Inovonics EchoStream® |
| North American Frequency | 902–928 MHz |
| Receiver Technology | Frequency-hopping spread spectrum |
| Wireless Points | Up to 16 transmitters or repeaters |
| Alarm Outputs | 5 Form C relay outputs |
| Fault Outputs | 1 Form C relay output |
| Total Form C Relays | 6 |
| Relay Rating | 1 A at 28 VDC; 0.5 A at 30 VAC resistive |
| Output Modes | Follower, latching, momentary or toggle |
| Event Log | 50 events |
| Point Identification | Up to 8 descriptive characters per point |
| Supervision Range | 0–99 hours; 60-minute default |
| Power Requirement | 11–14 VDC; 400 mA |
| Dimensions | 6.54 × 3.62 × 1.05 in. (166.1 × 91.9 × 26.67 mm) |
| Weight | 7.6 oz. (215 g) |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Operating Humidity | Up to 90% relative humidity, non-condensing |
| Regulatory Certifications | Security Level 1 CAN/ULC S304:2016, UL 985, UL 1023 and UL 2610 |
How the EN4216MR Integrates Wireless Devices
Each compatible EchoStream transmitter or repeater is registered to one of 16 receiver points. Individual alarm and trouble conditions are then mapped to the desired Form C relay. When a registered wireless device reports a programmed condition, the assigned relay changes state and presents a conventional dry-contact signal to the connected panel or equipment.
This relay-based architecture allows organizations to add EchoStream wireless devices to many existing hardwired systems without requiring an RS-232 or IP software integration. The connected panel processes the relay activation as a conventional hardwired input.
What Is Multi-Condition Transmitter Support?
Some EchoStream devices can report more than one alarm input or operating condition. The EN4216MR can recognize as many as four compatible alarm conditions from a single registered security transmitter and map each condition to a selected relay output and output type.
Multi-condition support provides greater programming flexibility than a basic one-transmitter-to-one-relay receiver. However, the EN4216MR still has only five alarm relays. Multiple transmitters or conditions may therefore need to share an output unless the application requires five or fewer separately identified alarm circuits.
LCD Programming, Status and Event History
Point Status
Displays alarm, tamper, low-battery, line-power-loss, and inactive conditions for registered points.
50-Event Log
Provides a history of the most recent alarm, tamper, inactive, and receiver-reset events.
Signal Strength
Shows good, weak, or no signal along with detailed signal-level and signal-margin readings.
Install and Service
Provides password-controlled access to point setup, registration, output mapping, signal testing, and configuration.
Independently Programmable Relay Modes
Follower
The relay follows the current alarm or fault state reported by the assigned wireless device.
Latching
The relay activates when the condition occurs and remains active until the receiver is reset.
Momentary
The relay provides a timed output after receiving a new activation from the assigned device.
Toggle
The relay changes state each time the assigned transmitter sends a new activation.
Common EN4216MR Applications
- Adding wireless zones to hardwired alarm panels
- Commercial intrusion detection
- Wireless panic, hold-up, and duress systems
- Door, window, and perimeter monitoring
- Wireless motion and glass-break detection
- Retail and financial security systems
- Healthcare and institutional security
- Wireless fire-alarm applications where approved
- Multi-building systems using repeaters
- Standalone wireless-to-relay control applications
EchoStream Device Compatibility
Current Inovonics documentation identifies support for compatible single-condition and multi-condition devices, including:
- EN1215EOL Universal Transmitter
- EN1215WEOL Door/Window Transmitter
- EN1223D Double-Button Pendant
- EN1235SF Fixed-Position Hold-Up Transmitter
- EN1235DF Double-Button Hold-Up Transmitter
- EN1244 Wireless Smoke Detector
- EN1245 Carbon Monoxide Detector
- EN1249 Billtrap Transmitter
- EN1261HT High-Traffic Motion Detector
- Compatible EN5040 Series repeaters
Compatibility warning: Device support, allowable alarm conditions, supervision requirements, and regulatory listings vary by application. Confirm the current transmitter, receiver, panel, repeater, and power-supply requirements before purchasing.
Which EchoStream Relay Receiver Do You Need?
| Feature | EN4204R | EN4216MR | EN4232MR |
|---|---|---|---|
| Wireless Points | 4 | 16 | 32 |
| Alarm Relays | 4 | 5 | 11 |
| Fault Relays | 1 | 1 | 1 |
| Multi-Condition Support | Limited/basic point programming | Yes | Yes |
| LCD and Event Log | No | Yes | Yes |
| Best Application | Small four-point expansion | Medium 16-point system | Larger 32-point system |
What to Verify Before Ordering
- Point capacity: The EN4216MR supports a maximum of 16 registered transmitters or repeaters.
- Output requirements: It provides five alarm relays and one fault relay, not 16 separate alarm relays.
- Panel compatibility: Confirm that the connected equipment accepts Form C dry-contact inputs.
- Zone wiring: Determine the required normally open, normally closed, and end-of-line resistor configuration.
- Condition mapping: Identify which alarms and trouble conditions require separate relay outputs.
- Transmitter support: Verify every EchoStream model and the alarm conditions required from each device.
- Power supply: Provide unswitched, uninterrupted, regulated 11–14 VDC power rated for 400 mA.
- RF coverage: Complete an EchoStream site survey and determine whether compatible repeaters are needed.
- Listing requirements: Verify that the complete receiver, transmitter, panel, power, repeater, and wiring configuration meets applicable standards.
Installation and RF Planning Guidance
- Install the EN4216MR indoors and within 98.5 feet of the connected control unit.
- Use 18–22 AWG wiring and an unswitched, uninterrupted, regulated power supply.
- Mount the receiver away from metal ductwork, pipes, wire mesh, safes, and enclosed metal cabinets.
- Keep the receiver accessible for programming, testing, and maintenance.
- Use an EchoStream survey kit to evaluate signal level and signal margin.
- Program a supervision interval longer than each transmitter’s check-in interval.
- Assign alarms, tampers, low-battery conditions, inactivity, and repeater power loss to the appropriate outputs.
- Use descriptive point labels to simplify future service and troubleshooting.
- Perform a walk test with every registered transmitter after installation.
- Test the installed security system regularly as directed by Inovonics.
Professional installation required: The EN4216MR should be installed and maintained by qualified security professionals familiar with relay wiring, alarm-panel programming, RF site surveys, and applicable security standards.
Frequently Asked Questions
What does the Inovonics EN4216MR do?
It receives and supervises as many as 16 compatible EchoStream wireless transmitters or repeaters and maps their alarm and fault conditions to Form C relay outputs.
Does the EN4216MR provide 16 relay outputs?
No. It supports up to 16 wireless points but provides five Form C alarm relays and one Form C fault relay. Multiple points or conditions can be mapped to the same output.
What does multi-condition support mean?
It allows multiple compatible alarm conditions from a single transmitter to be recognized and mapped independently to selected relay outputs and output modes.
Does the EN4216MR have an event log?
Yes. Its LCD menu provides access to the 50 most recent alarm, tamper, inactive, and receiver-reset events.
Can the receiver display transmitter signal strength?
Yes. It can display good, weak, or no signal and provide detailed signal-level and signal-margin information for active registered devices.
Does the EN4216MR require an RS-232 connection?
No. It connects to compatible panels and equipment through Form C dry-contact relay outputs.
What is the difference between the EN4216MR and EN4204R?
The EN4216MR supports 16 points, multi-condition transmitters, an LCD, signal-strength information, and a 50-event log. The EN4204R supports four transmitters and offers simpler LED-based programming.
What is the difference between the EN4216MR and EN4232MR?
The EN4216MR supports 16 wireless points with five alarm relays, while the EN4232MR supports 32 points with 11 alarm relays. Both support multi-condition devices, LCD programming, and event logging.
What power does the EN4216MR require?
It requires an unswitched, uninterrupted, regulated 11–14 VDC supply rated for 400 mA.
Manufacturer Documents
Documents are provided by Inovonics Wireless Corporation. This page uses the specifications and relay configuration published in the newer installation and operation manual where older literature differs.
Flexible 16-Point EchoStream Wireless Expansion
The Inovonics EN4216MR EchoStream 16-Zone Multi-Condition Receiver combines broad wireless-device support with conventional Form C relay integration. Its 16 supervised points, multi-condition programming, five alarm relays, dedicated fault relay, LCD interface, signal-strength tools, event history, tamper protection, and RF-jam detection make it a strong choice for medium-sized commercial security systems that need reliable EchoStream wireless expansion without a software-based serial integration.
