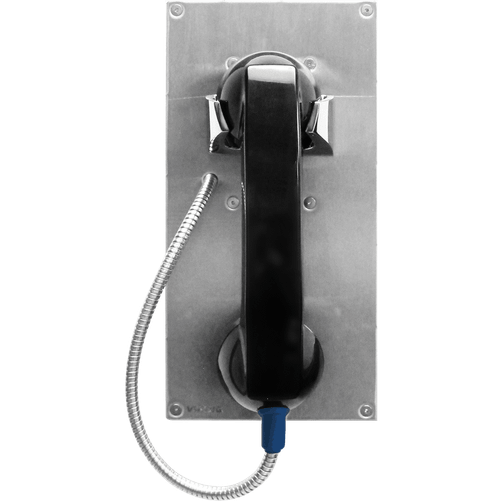

Viking Electronics K-1900712LIPEWP VoIP Panel Phone with 12" Armored Handset Cable, Lanyard & Enhanced Weather Protection
The Viking Electronics K-1900712LIPEWP is a rugged, vandal-resistant VoIP panel phone engineered for demanding indoor and outdoor communication, access control, security, and entry applications. Combining a heavy-duty 316 stainless steel front panel, a reinforced 12-inch armored handset cable, internal stainless steel lanyard, SIP compatibility, PoE operation, and Viking's Enhanced Weather Protection (EWP), this panel phone is designed for installations where durability and reliable communication are essential.
Designed to meet an IP66 Ingress Protection Rating, the K-1900712LIPEWP is especially well suited for exposed entrances, gates, apartment entry systems, security stations, kiosks, customer assistance locations, ATM areas, industrial facilities, and other environments subject to precipitation, condensation, vandalism, or extreme temperatures.
Quick Specifications
| Manufacturer | Viking Electronics |
| Model | K-1900712LIPEWP |
| Product Type | Vandal-Resistant SIP VoIP Panel Phone |
| Power | PoE Class 1, less than 4 Watts |
| Weather Protection | Enhanced Weather Protection (EWP), designed to meet IP66 |
| Faceplate | 14-gauge marine-grade 316 stainless steel |
| Handset Cable | 12" armored cable with internal stainless steel lanyard |
| Relay | SPDT 2 Amp contacts for door, gate or camera control |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Dimensions | 5.0" W × 10.0" H × 5.1" D |
| Mounting | Flush mount to standard double-gang box; optional surface-mount enclosure available |
Vandal-Resistant Construction
The K-1900712LIPEWP is built for public-facing and unattended locations where conventional telephones may be vulnerable to abuse or tampering.
- 14-gauge 316 stainless steel front panel
- Permanent laser-etched graphics
- Heavy-duty metal hook switch
- 12" armored handset cable
- Internal stainless steel handset lanyard for additional strength
- T-10 security Torx drive mounting screws
- Heavy-duty construction for high-use commercial and institutional installations
Enhanced Weather Protection
Viking's Enhanced Weather Protection makes this model suitable for outdoor applications exposed to precipitation, moisture, condensation, and major temperature changes.
- Marine-grade 316 stainless steel faceplate
- Marine-grade 316 stainless steel Torx security screws
- EWP construction designed to meet IP66 Ingress Protection Rating
- Faceplate, earpiece, and mouthpiece gaskets
- Designed for operation from -40°F to 140°F
- Rated for humidity up to 100%
Learn more about Viking Enhanced Weather Protection (EWP).
SIP VoIP Communication & Auto Dialing
The Viking K-1900712LIPEWP provides reliable SIP-based VoIP communication while simplifying installation through Power over Ethernet (PoE). When the handset is lifted, the phone can automatically dial a programmable 1- to 20-digit telephone number. If the call encounters a busy signal or is not answered, the unit can cycle through up to three additional rollover numbers.
- SIP compliant
- PoE powered — Class 1, less than 4 Watts
- Outbound Proxy support
- Authentication ID support
- Peer-to-Peer operation
- VLAN tagging
- Network-downloadable firmware
- Remote programming capability
- Selectable auto-answer feature for monitoring applications
- Adjustable ring volume and cadence
- Audio codec support for G711u, G711a, and G722
- IEEE 802.3af PoE and SIP 2.0 RFC3261 network compliance
The unit can be programmed from a PC on the same LAN or remotely when configured with an appropriate static IP address.
Built-In Door, Gate & Camera Relay Control
More than a rugged VoIP telephone, the K-1900712LIPEWP includes SPDT 2 Amp relay contacts that can be used for access-control and security applications. When a call from the panel phone is answered, the relay can be activated to operate an electric gate or door strike.
The relay can also be programmed to activate whenever the handset is off-hook, making the phone useful in applications where lifting the handset should trigger a surveillance camera or other external device.
For applications requiring the relay to be installed securely away from the phone, Viking offers the optional RC-4A Secure Remote Relay Controller.
12" Armored Handset Cable with Internal Lanyard
This K-1900-7 Series configuration uses a short 12-inch armored handset cable reinforced by an internal stainless steel lanyard. The design provides additional cable strength and vandal resistance while helping keep the handset close to the panel. The hearing-aid-compatible amplified handset also includes a sealed push-button volume control.
Ideal Applications
- Commercial door and gate entrances
- Residential controlled entrances
- Apartment entry systems
- Industrial facilities
- Kiosks and unattended locations
- Courtesy and customer assistance phones
- ATM and banking locations
- Security and emergency communication
- Hot-line phone applications
- Correctional and detention facilities
Mounting Options
The K-1900712LIPEWP can be flush mounted using a standard double-gang electrical box, which is not included.
For surface-mount installations, Viking offers the optional VE-5×10 Surface Mount Box.
For improved visibility in dark or nighttime installations, the optional VE-LIGHT Panel Lighting Kit can be used to illuminate the front panel.
Why Choose the Viking K-1900712LIPEWP?
The K-1900712LIPEWP combines several functions that would otherwise require separate devices: rugged SIP VoIP communication, automatic dialing, PoE power, door or gate relay control, monitoring capability, extreme-temperature operation, and weather-resistant construction.
For installations where a conventional telephone may not withstand weather, vandalism, or continuous public use, its 316 stainless steel construction, armored handset cable, internal lanyard, security fasteners, and IP66-oriented EWP design provide a purpose-built solution for demanding commercial and security environments.
